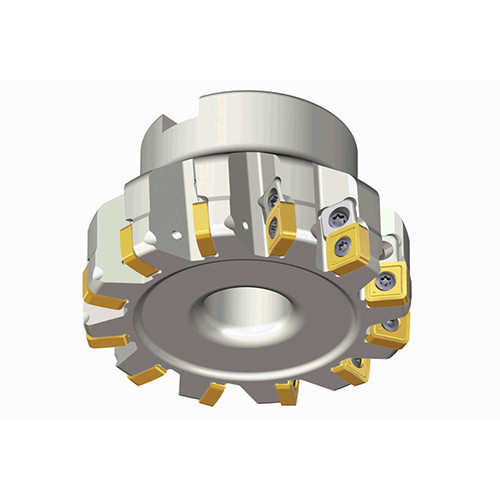

TFM90SNS 463-22R-12
90° Face mills with adjustable pockets and precision ground wiper SN 12 inserts for finishing of steels and cast irons
Ürün Özellikleri
| Takım Çapı (DC) | 63 mm | Master Insert Identification (MIID) | SNEX 1204-W |
| Takım Ağız Sayısı | 4 | Gövde Malzemesi | Steel |
| Maksimum Kesme Boyu (APMX) | 1 mm | Uygulama | | Yüzey Frezeleme | |
| Takım Bağlama Çapı (DCONMS) | 22 mm | Ölçüm Türü | Metric |
| Takım Toplam Boyu | 50 mm | Unit | M |
Ürün Özellikleri
| FamilyDesc | 90° Face mills with adjustable pockets and precision ground wiper SN 12 inserts for finishing of steels and cast irons | FamilyName | TFM90SNS-R-12 |
| Remarks | Recommend to do very stable machining condition at cast iron & steel for better finishing Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Nakliye Bilgisi
PackageWeight
0.6900
Ad
Indexable Face Mills
FamilyName
TFM90SNS-R-12
BrandName
Taegutec
