SIR 0013 M16

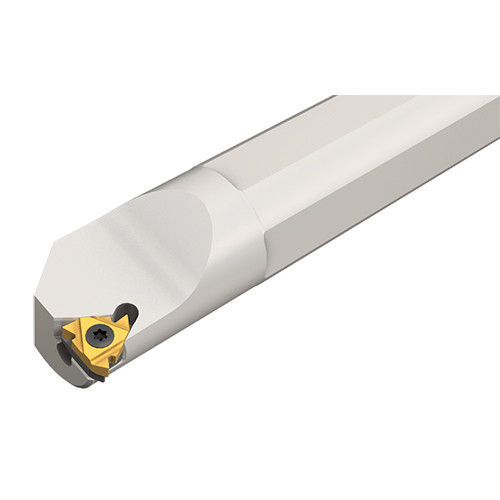

Internal threading boring bars. (AD-short bars for adaptor holders)
Ürün Özellikleri

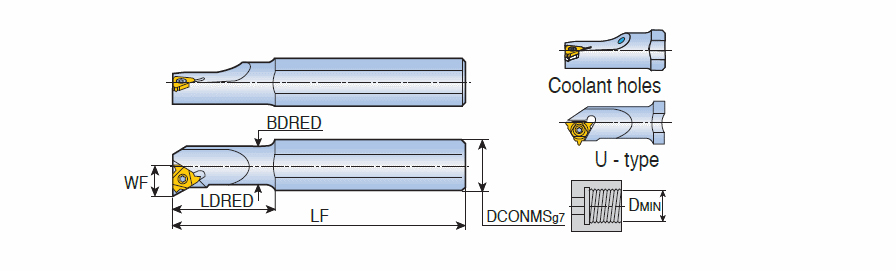

| Takım Bağlama Çapı (DCONMS) | 16 mm | Uygulama | | iç çap diş açma | |
| Functional Length (LF) | 32 mm | Gövde Malzemesi | Steel |
| Minimum Bore Diameter (DMIN) | 16 mm | Ölçüm Türü | Metric |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Coolant Supply Property (CSP) | External |
Ürün Özellikleri
| FamilyDesc | Internal threading boring bars. (AD-short bars for adaptor holders) | FamilyName | SIR/L |

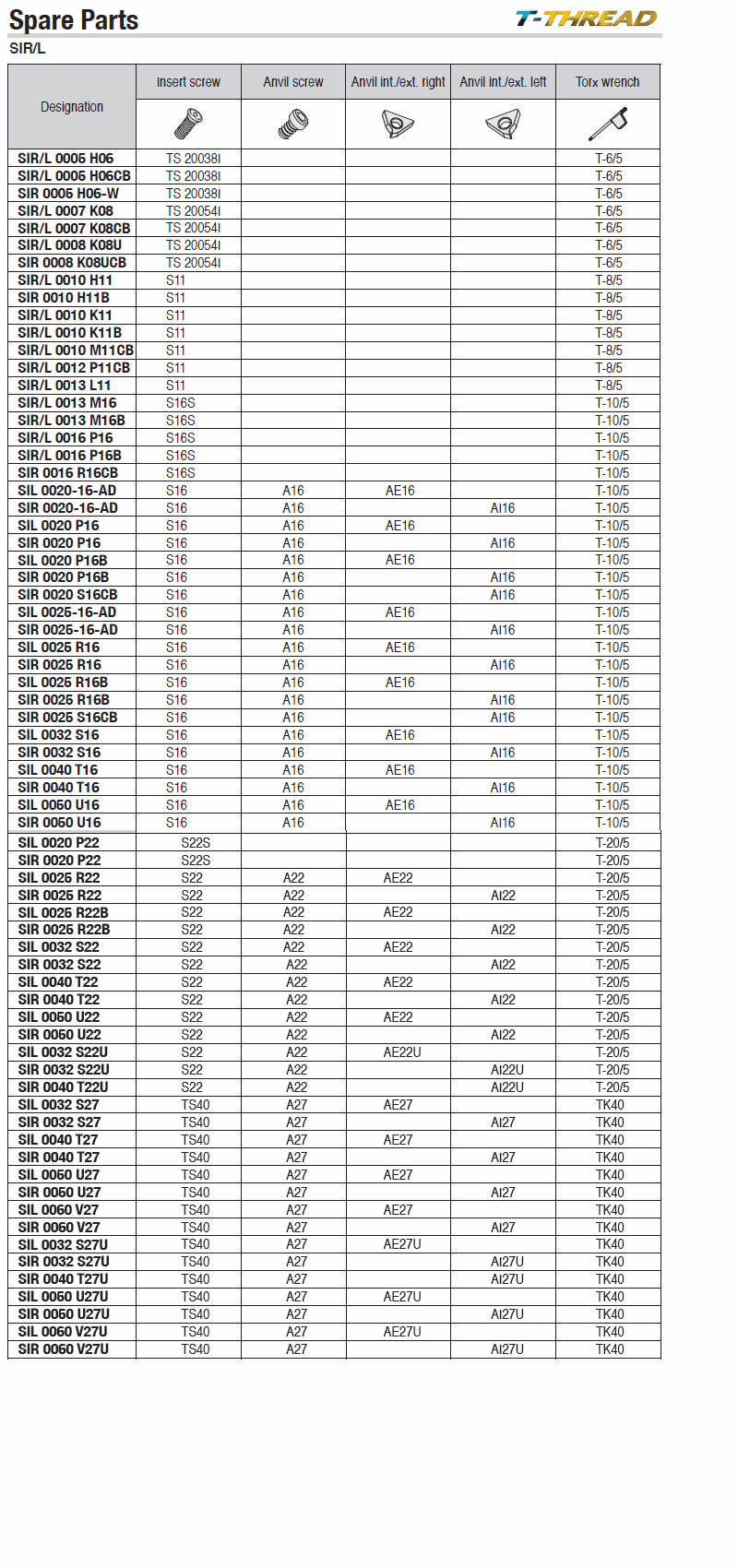

| Remarks | For multi tooth inserts use anvils AI16M, AI22M, AI27M All Toolholders are made with 1.5 deg. helix angle | BrandName | Taegutec |
| COO | ISRAEL |
Nakliye Bilgisi
PackageWeight
0.2200
Ad
Indexable Internal Turning Tools
FamilyName
SIR/L
BrandName
Taegutec
