PS SK40 15 M16 DIN O B

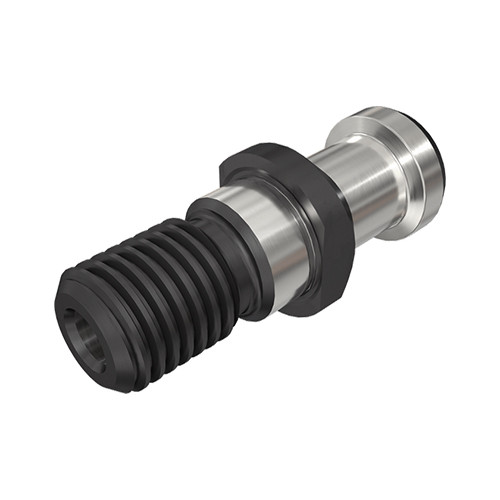

SK Pull stud with DIN 69872 retention knob
Ürün Özellikleri
| Shank Size (SS) | 40 mm | Ölçüm Türü | Metric |
| Body Diameter (BD) | 17 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Connection Retention Knob Thread Size (CRKS) | M16 | Cutter Outer Diameter (D1) | 19 mm |
| Takım Toplam Boyu | 54 mm | Reduced Diameter (D2) | 14 mm |
| Body Length_2 (LB_2) | 26 mm | Gövde Malzemesi | Steel |
| Uygulama | | Pensler & Yedek Parçalar | | Unit | M |
Ürün Özellikleri
| FamilyDesc | SK Pull stud with DIN 69872 retention knob | FamilyName | PS SK-DIN (PULL STUD) |

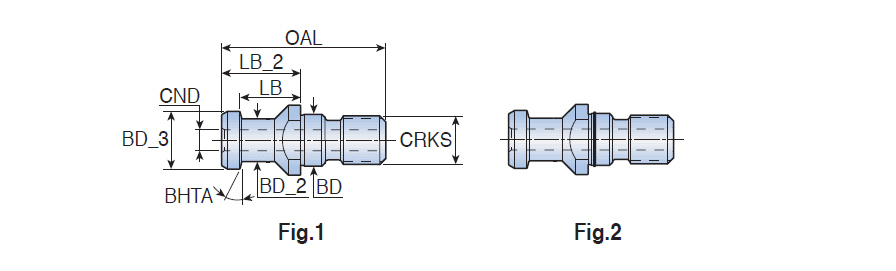

| Remarks | Coolant holes only in items with a "B" suffix Fig. 2: With external O ring | BrandName | Taegutec |
| COO | ITALY |
Nakliye Bilgisi
PackageWeight
0.0750
Ad
Pull Studs (Retention Knobs)
FamilyName
PS SK-DIN (PULL STUD)
BrandName
Taegutec
