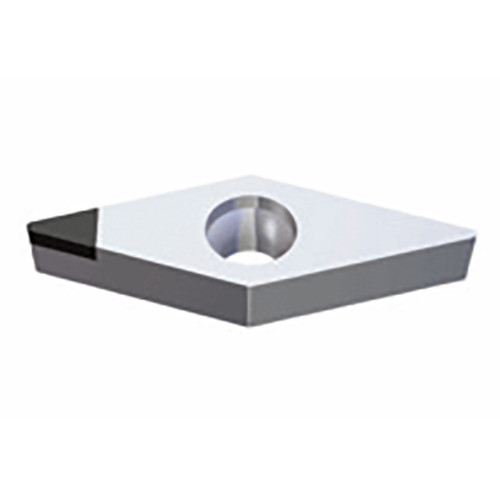

VBGW 160404 LS2 TB670
Positive 35° Rhombic inserts with CBN tips for finishing of hardened steels and cast irons
Ürün Özellikleri
| İşlenebilir Malzeme | | Sert Malzemeler | | Kalite | TB670 |
| Uygulama | | Ext 117.5° App 35° Diamond | Ext 72.5° App 35° Diamond | Ext 93° App 35° Diamond | Ext 93° App Sleeve 35° Diamond | Ext 95° App Shift 35°Diamond | Inserts | Int 100° App 70° Diamond | Int 108° App 35° Diamond | Int 117.5 App 35° Diamond | Int 142° App 35° Diamond | Int 93° App 35° Diamond | Tools for Swiss Machines | | Min D.O.C. | 0.05 mm |

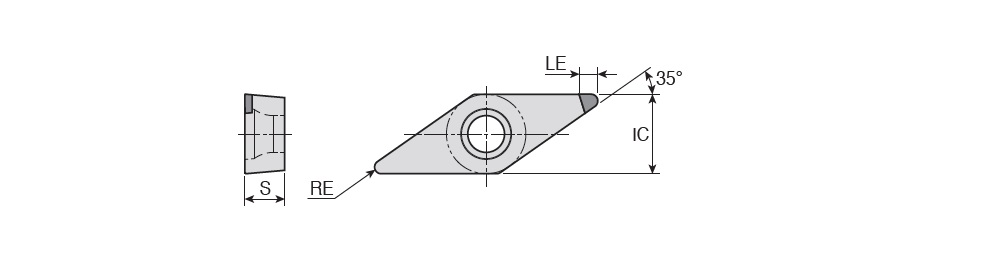

| Köşe Radyus (RE) | 0.4 mm | Maksimum Kesme Boyu (APMX) | 0.5 mm |
| Cutting Edge Length (L) | 16.6 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Uç Kalınlığı (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Ölçüm Türü | Metric |
| Keskin Kenar Malzemesi | PCBN | Gövde Malzemesi | Carbide |
| Kaplama | Uncoated | Unit | M |
Ürün Özellikleri
| FamilyDesc | Positive 35° Rhombic inserts with CBN tips for finishing of hardened steels and cast irons | FamilyName | VBGW-CBN |
| COO | S.KOREA | BrandName | Taegutec |
Nakliye Bilgisi
PackageWeight
0.0160
Ad
Turning Indexable Inserts
FamilyName
VBGW-CBN
BrandName
Taegutec
