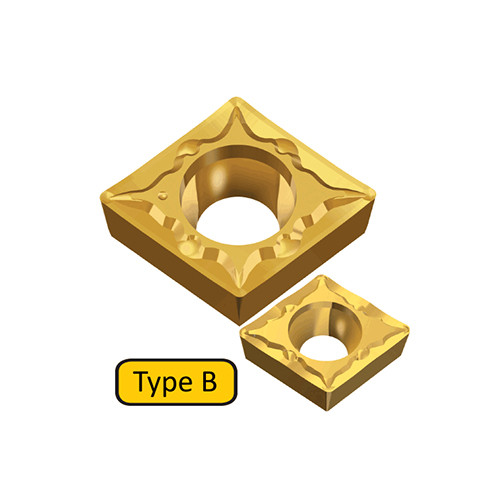

CCMT 060204 FG TT8125B

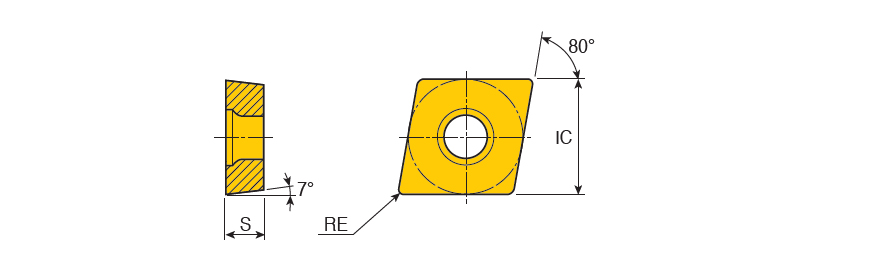

Positive 80° Rhombic inserts for finish to medium light applications of steels & stainless steels with 7° clearance angle & excellent chip control
Ürün Özellikleri
| İşlenebilir Malzeme | | Çelik | | Fixing Hole Diameter (D1) | 2.8 mm |
| Uygulama | | dış çap 80 derecelik uç 90 der | dış çap 80 derecelik uç 95 der | iç çap 80 derecelik uç 95 dere | | Min D.O.C. | 0.3 mm |
| Köşe Radyus (RE) | 0.4 mm | Maksimum Kesme Boyu (APMX) | 1.5 mm |
| Cutting Edge Length (L) | 6.3 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Uç Kalınlığı (S) | 2.38 mm | Max. Turning Feed (ft(max)) | 0.15 mm/rev |
| Inscribed Circle Diameter (IC) | 6.35 mm | Ölçüm Türü | Metric |
| Keskin Kenar Malzemesi | Carbide | Gövde Malzemesi | Carbide |
| Kaplama | TiCN+Al2O3+TiN | Unit | M |
| Kalite | TT8125B |
Ürün Özellikleri
| FamilyDesc | Positive 80° Rhombic inserts for finish to medium light applications of steels & stainless steels with 7° clearance angle & excellent chip control | FamilyName | CCMT-FG |
| COO | S.KOREA | BrandName | Taegutec |
Nakliye Bilgisi
PackageWeight
0.0019
Ad
Turning Indexable Inserts
FamilyName
CCMT-FG
BrandName
Taegutec
