WNMX 060408 PC TT8125B

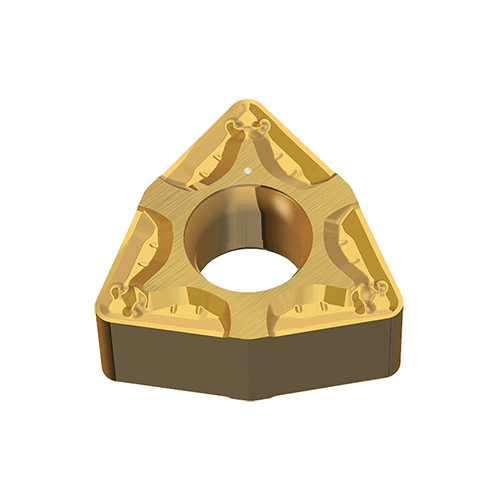

Negative 80° Trigon RHINOTURN inserts for medium to semi- finishing applications of steels & automotive parts
Ürün Özellikleri

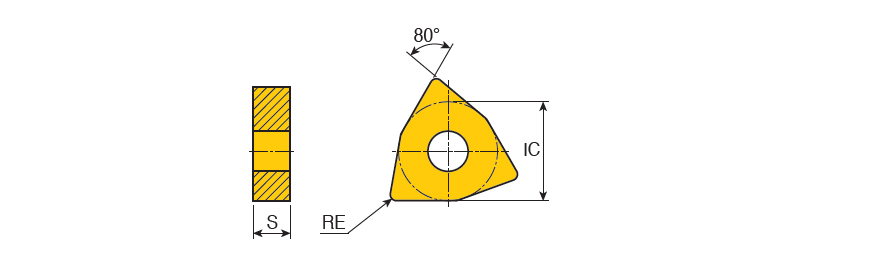

| İşlenebilir Malzeme | | Çelik | | Kalite | TT8125B |
| Uygulama | | Ext 95° App 80°Trigon | Inserts | Int 95° App 80° Trigon | | Min D.O.C. | 0.5 mm |
| Köşe Radyus (RE) | 0.8 mm | Maksimum Kesme Boyu (APMX) | 3 mm |
| Cutting Edge Length (L) | 6.52 mm | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Uç Kalınlığı (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Ölçüm Türü | Metric |
| Keskin Kenar Malzemesi | Carbide | Gövde Malzemesi | Carbide |
| Kaplama | TiCN+Al2O3+TiN | Unit | M |
Ürün Özellikleri
| FamilyDesc | Negative 80° Trigon RHINOTURN inserts for medium to semi- finishing applications of steels & automotive parts | FamilyName | WNMX-PC (RHINO) |
| COO | S.KOREA | BrandName | Taegutec |
Nakliye Bilgisi
PackageWeight
0.0053
Ad
Turning Indexable Inserts
FamilyName
WNMX-PC (RHINO)
BrandName
Taegutec
