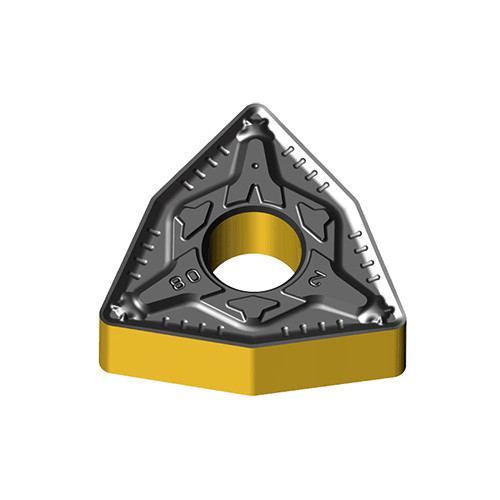

WNMG 080408 MGP TT8105B
Negative 80° Trigon inserts for medium machining of steels with reliable cutting edge and wide range of chip control
Ürün Özellikleri
| İşlenebilir Malzeme | | Çelik | | Kalite | TT8105B |
| Uygulama | | Ext 95° App 80°Trigon | Inserts | Int 95° App 80° Trigon | | Min D.O.C. | 0.5 mm |

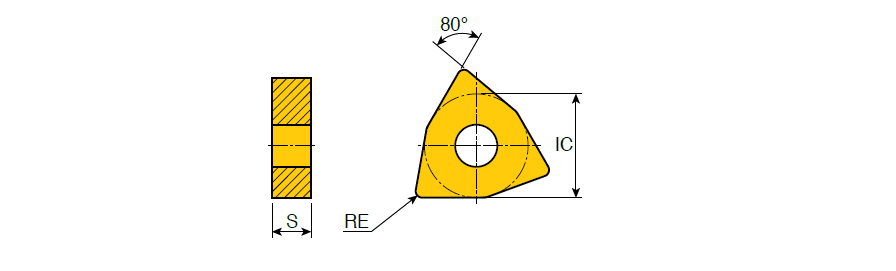

| Köşe Radyus (RE) | 0.8 mm | Maksimum Kesme Boyu (APMX) | 4 mm |
| Cutting Edge Length (L) | 8.7 mm | Min. Turning Feed (ft(min)) | 0.15 mm/rev |
| Uç Kalınlığı (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.55 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Ölçüm Türü | Metric |
| Keskin Kenar Malzemesi | Carbide | Gövde Malzemesi | Carbide |
| Kaplama | TiCN-Al203-TiN | Unit | M |
Ürün Özellikleri
| FamilyDesc | Negative 80° Trigon inserts for medium machining of steels with reliable cutting edge and wide range of chip control | FamilyName | WNMG-MGP. |
| COO | S.KOREA | BrandName | Taegutec |
Nakliye Bilgisi
PackageWeight
0.0106
Ad
Turning Indexable Inserts
FamilyName
WNMG-MGP.
BrandName
Taegutec
