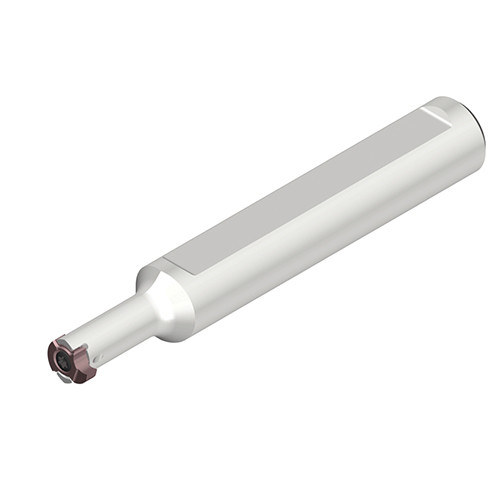

TMIHN 12-16-8

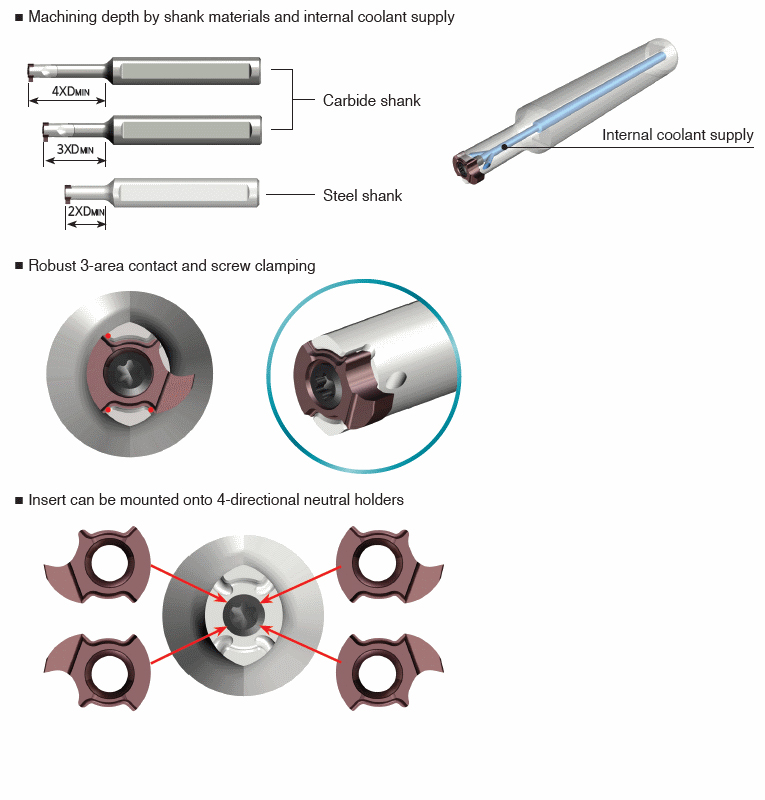

Small size boring bar with coolant holes for internal shallow grooving on small diameter Dmin=10mm with TMIS 8 inserts
Ürün Özellikleri

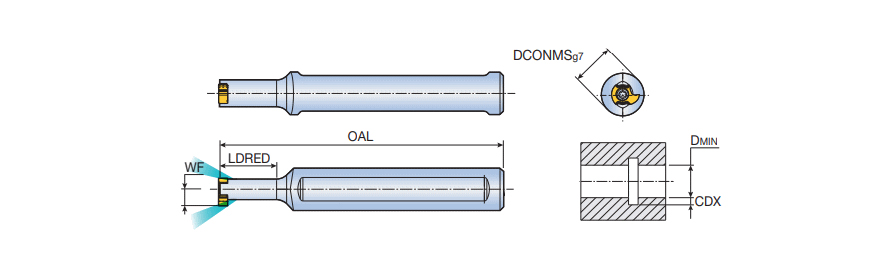

| Takım Bağlama Çapı (DCONMS) | 12 mm | Functional Width (WF) | 4.7 mm |
| Minimum Bore Diameter (DMIN) | 10 mm | Gövde Malzemesi | Steel |
| Reduced Body Diameter Length (LDRED) | 16 mm | Ölçüm Türü | Metric |
| Cutting Direction (HAND) | Neutral | Takım Toplam Boyu | 80 mm |
| Uygulama | | İç çap kanal açma | İç çap kesme & tornalama | | Unit | M |
Ürün Özellikleri
| FamilyDesc | Small size boring bar with coolant holes for internal shallow grooving on small diameter Dmin=10mm with TMIS 8 inserts | FamilyName | TMIHN |
| Remarks | CDX: Refer to insert dimension | BrandName | Taegutec |
| COO | S.KOREA |
Nakliye Bilgisi
PackageWeight
0.0630
Ad
Solid Boring Bars
FamilyName
TMIHN
BrandName
Taegutec
