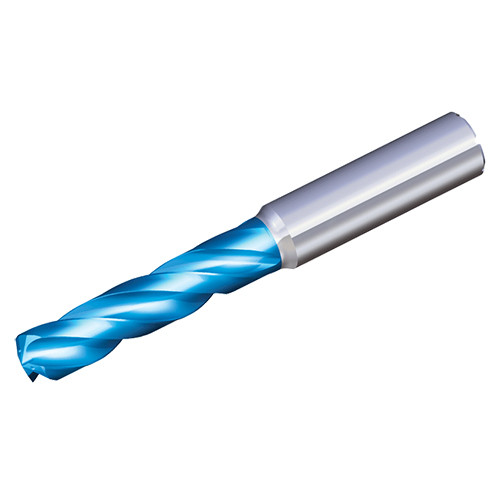

3HD 103-040-12 PI3 TT5130
3 Flute Solid carbide drills with internal coolant holes in drilling depth of 3xD for high productivity
Ürün Özellikleri
| Drill Bit Size / Cutting Diameter (DC) | 10.3 mm | Keskin Kenar Malzemesi | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10.3 mm | Kalite | TT5130 |
| Kaplama | Multi TiAlN | Ölçüm Türü | Metric |
| İşlenebilir Malzeme | | Çelik | Dökme Demir | | Usable Length (LU) | 40 mm |
| Uygulama | | delik delme | | Length Chip Flute (LCF) | 55 mm |
| Takım Bağlama Çapı (DCONMS) | 12 mm | Takım Toplam Boyu | 102 mm |
| Point Length (PL) | 1.94 mm | Gövde Malzemesi | Carbide |
| Shank Length (LS) | 45 mm | Unit | M |
Ürün Özellikleri
| FamilyDesc | 3 Flute Solid carbide drills with internal coolant holes in drilling depth of 3xD for high productivity | COO | S.KOREA |
Nakliye Bilgisi
PackageWeight
0.1135
