HSK A 50 ER 25X100

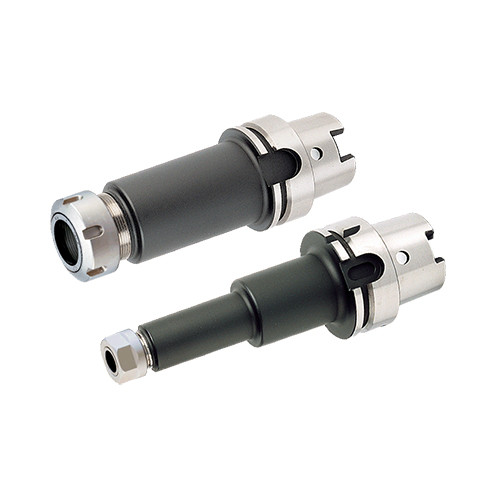

DIN 6499 ER collet chucks with HSK DIN 69893 taper shanks
Ürün Özellikleri
| Connection Size (CSI) | ER25 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Diameter (BD) | 42 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 16 mm |
| Body Length Maximum (LBX) | 100 mm | Ölçüm Türü | Metric |
| Takım Bağlama Çapı (DCONMS) | 50 mm | Connection Diameter Workpiece Side (DCONWS) | 0 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | M16 | Gövde Malzemesi | Steel |
| Uygulama | | HSK | | Unit | M |
| Nose Length | 74 mm |
Ürün Özellikleri
| FamilyDesc | DIN 6499 ER collet chucks with HSK DIN 69893 taper shanks | FamilyName | HSK A-ER |
| COO | GERMANY | BrandName | Taegutec |
Nakliye Bilgisi
PackageWeight
0.7900
Ad
Pensli tutucular
FamilyName
HSK A-ER
BrandName
Taegutec
