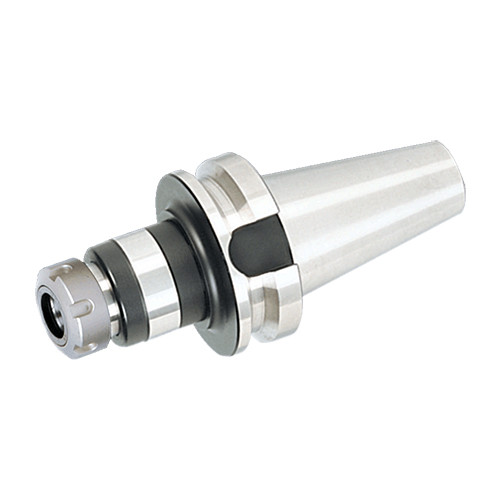

GTI BT50 ER 40
DIN 6499 ER tapping attachments with floating mechanism & BT MAS-403 form A taper shanks
Ürün Özellikleri

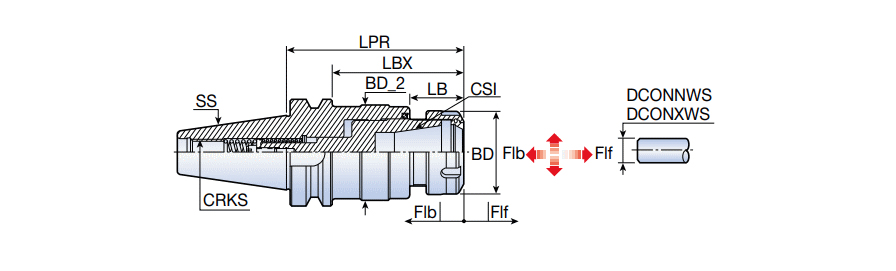

| Connection Size (CSI) | ER40 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 26 mm |
| Body Diameter (BD) | 63 mm | Tap Max | M28 |
| Body Length Maximum (LBX) | 133.2 mm | Tap Min | M6 |
| Takım Bağlama Çapı (DCONMS) | 50 mm | Ölçüm Türü | Metric |
| Uygulama | | Kılavuz çekme | | Gövde Malzemesi | Steel |
| Nose Length | 95.2 mm | Unit | M |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 3 mm |
Ürün Özellikleri
| FamilyDesc | DIN 6499 ER tapping attachments with floating mechanism & BT MAS-403 form A taper shanks | FamilyName | GTI BT-ER(TAPPING) |
| Remarks | No coolant should be induced through the tap chuck as it will cause malfunctioning of the mechanism | BrandName | Taegutec |
| COO | ISRAEL |
Nakliye Bilgisi
PackageWeight
5.0400
Ad
Pensli tutucular
FamilyName
GTI BT-ER(TAPPING)
BrandName
Taegutec
