DIN69871 50 ER 40 SHORT
Short DIN6499 ER collet chucks with DIN 69871 form AD taper shanks
Ürün Özellikleri

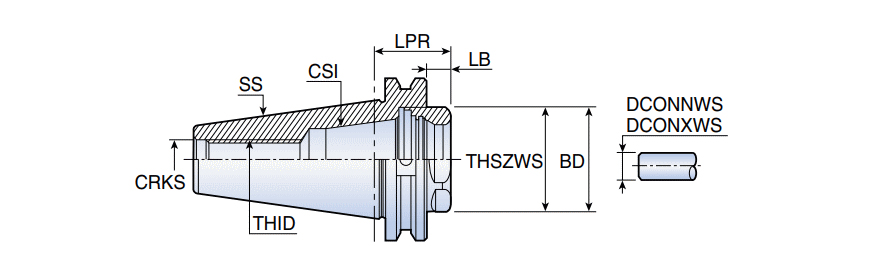

| Connection Size (CSI) | ER40 | Nose Length | 9.5 mm |
| Body Diameter (BD) | 50 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Length Maximum (LBX) | 28.6 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 26 mm |
| Takım Bağlama Çapı (DCONMS) | 50 mm | Ölçüm Türü | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | M28X1.5 | Gövde Malzemesi | Steel |
| Uygulama | | DIN 69871 | | Unit | M |
Ürün Özellikleri
| FamilyDesc | Short DIN6499 ER collet chucks with DIN 69871 form AD taper shanks | FamilyName | DIN69871-ER-SHORT |
| COO | TURKEY | BrandName | Taegutec |
Nakliye Bilgisi
PackageWeight
2.3750
Ad
Pensli tutucular
FamilyName
DIN69871-ER-SHORT
BrandName
Taegutec
