C5 ER32X100

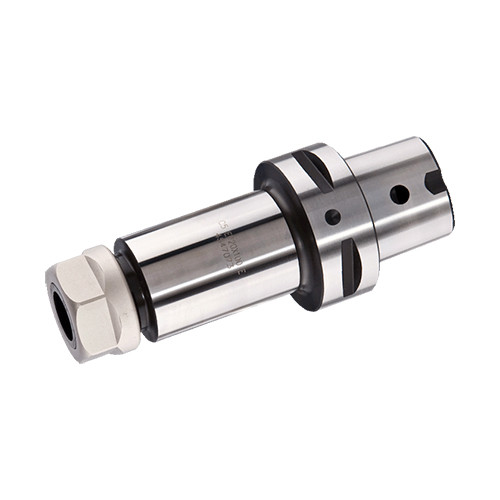

DIN 6499 ER collet chucks with C-ADAPTER (ISO 26623-1)
Ürün Özellikleri

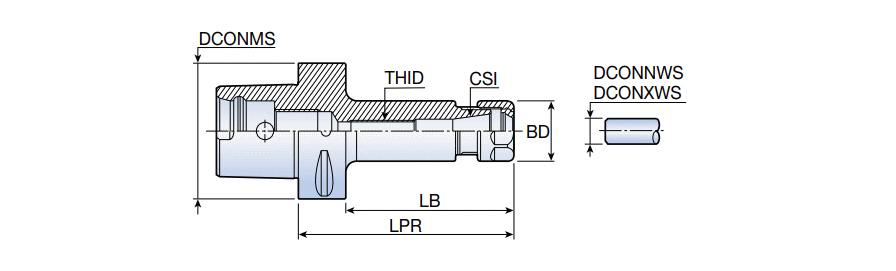

| Connection Size (CSI) | ER32 | Nose Length | 80 mm |
| Body Diameter (BD) | 50 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Length Maximum (LBX) | 100 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Takım Bağlama Çapı (DCONMS) | 50 mm | Ölçüm Türü | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | M22X1.5 | Gövde Malzemesi | Steel |
| Shank Length (LS) | 100 mm | Unit | M |
| Uygulama | | Capto Adaptör | |
Ürün Özellikleri
| FamilyDesc | DIN 6499 ER collet chucks with C-ADAPTER (ISO 26623-1) | FamilyName | C-ER |
| COO | ISRAEL | BrandName | Taegutec |
Nakliye Bilgisi
PackageWeight
0.6000
Ad
Pensli tutucular
FamilyName
C-ER
BrandName
Taegutec
