DIN69871 50 MT4X 95

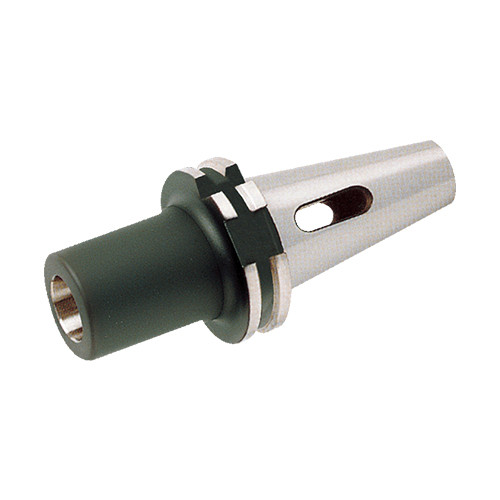

DIN 6383 / DIN 228-2 form D tang Morse taper adapter with DIN 69871 form A shanks
Ürün Özellikleri

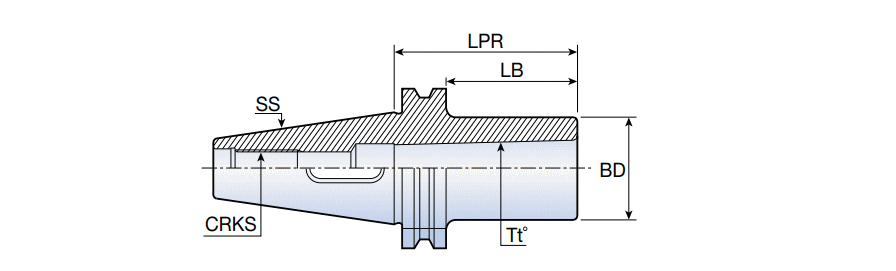

| Body Half Taper Angle (BHTA) | MT4 Degrees | Connection Retention Knob Thread Size (CRKS) | M24 |
| Shank Size (SS) | 50 mm | Connection Diameter Workpiece Side (DCONWS) | 48 mm |
| Ölçüm Türü | Metric | Functional Length (LF) | 95 mm |
| Uygulama | | Mors Konik | | Gövde Malzemesi | Steel |
| Protruding Length (LPR) | 75.9 mm | Unit | M |
Ürün Özellikleri

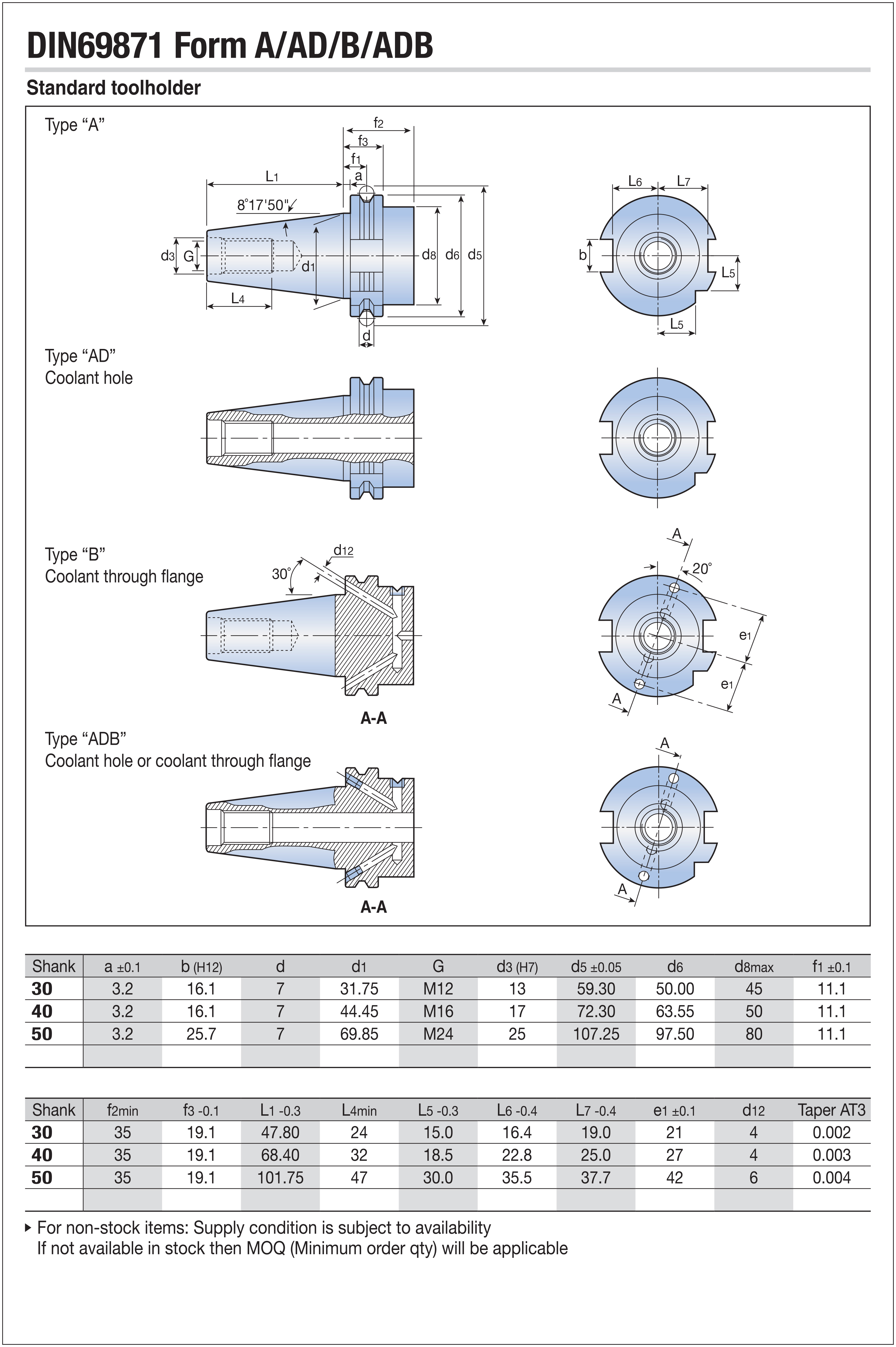

| FamilyDesc | DIN 6383 / DIN 228-2 form D tang Morse taper adapter with DIN 69871 form A shanks | FamilyName | DIN69871-MT |
| COO | TURKEY | BrandName | Taegutec |
Nakliye Bilgisi
PackageWeight
3.1800
Ad
Morse Taper Adapters
FamilyName
DIN69871-MT
BrandName
Taegutec
