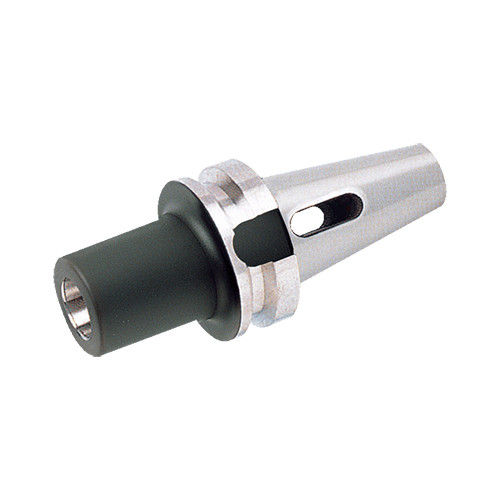

BT50 MT1X120

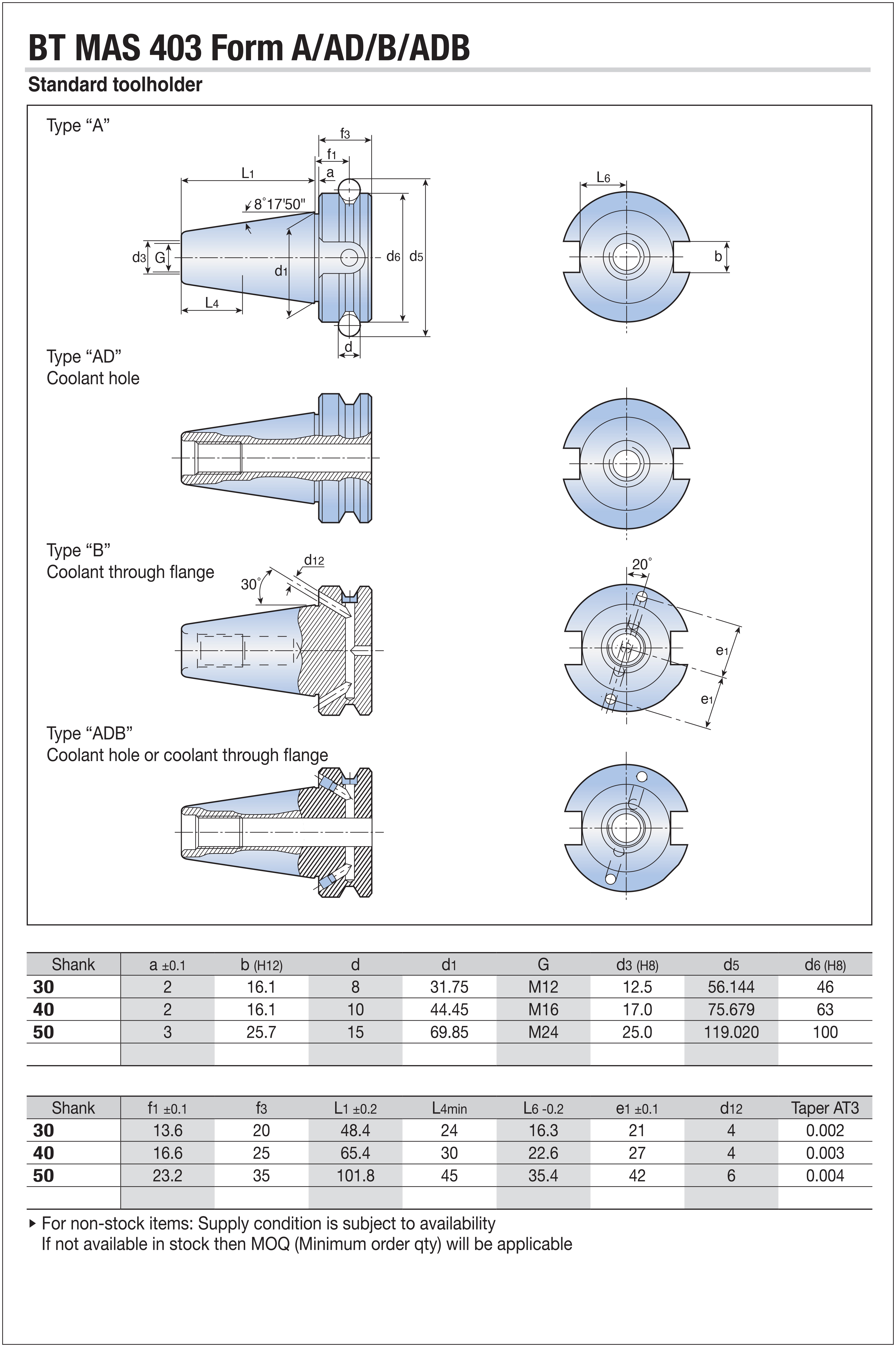

DIN 6383 / DIN 228-2 form D tang Morse taper adapter with BT MAS-403 form A shanks
Ürün Özellikleri

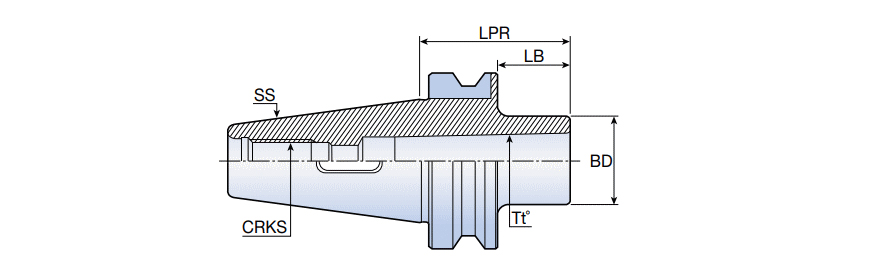

| Body Half Taper Angle (BHTA) | MT1 Degrees | Connection Retention Knob Thread Size (CRKS) | M24 |
| Shank Size (SS) | 50 mm | Connection Diameter Workpiece Side (DCONWS) | 25 mm |
| Ölçüm Türü | Metric | Functional Length (LF) | 120 mm |
| Uygulama | | Mors Konik | | Gövde Malzemesi | Steel |
| Protruding Length (LPR) | 82 mm | Unit | M |
Ürün Özellikleri
| FamilyDesc | DIN 6383 / DIN 228-2 form D tang Morse taper adapter with BT MAS-403 form A shanks | FamilyName | BT-MT |
| COO | ITALY | BrandName | Taegutec |
Nakliye Bilgisi
PackageWeight
4.0800
Ad
Morse Taper Adapters
FamilyName
BT-MT
BrandName
Taegutec
