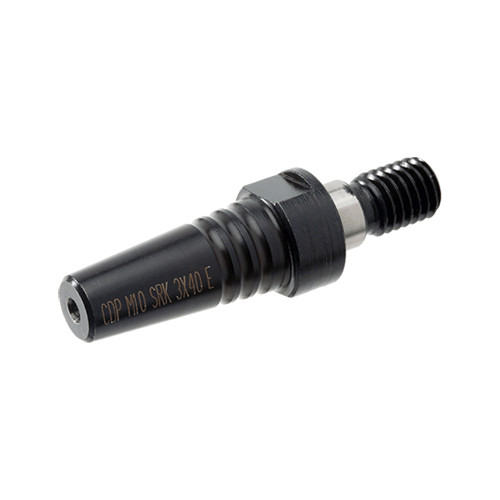

CDP M10 SRK 3X40
Thermal shrinking chucks with T-FLEXTEC modular adaptations & internal coolant hole for solid carbide tools
Ürün Özellikleri

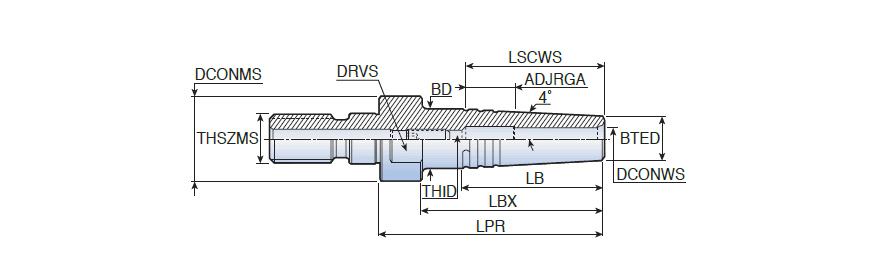

| Connection Diameter Workpiece Side (DCONWS) | 3 mm | Clamping Length Workpiece Side (LSCWS) | 16 mm |
| Body Length (LB) | 28.4 mm | Usable Length (LU) | 40 mm |
| Body Diameter_2 (BD_2) | 10 mm | Ölçüm Türü | Metric |
| Uygulama | | T FLEXTEC | | Gövde Malzemesi | Steel |
| Thread Designation Inside (THID) | M4 | Unit | M |
Ürün Özellikleri
| FamilyDesc | Thermal shrinking chucks with T-FLEXTEC modular adaptations & internal coolant hole for solid carbide tools | FamilyName | CDP M-SRK |
| COO | ISRAEL | BrandName | Taegutec |
Nakliye Bilgisi
PackageWeight
0.0700
Ad
Shrink Fit Holders
FamilyName
CDP M-SRK
BrandName
Taegutec
