HSK A 63 SRKIN 16X120
Thermal shrinking chucks with HSK DIN 69893 form A taper shanks for solid carbide and steel shank tools
Ürün Özellikleri

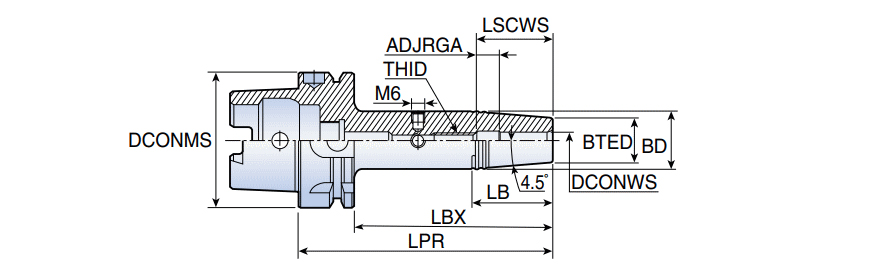

| Takım Bağlama Çapı (DCONMS) | 63 mm | Thread Designation Inside (THID) | M12 |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Clamping Length Workpiece Side (LSCWS) | 50 mm |
| Shank Size (SS) | 63 mm | Usable Length (LU) | 120 mm |
| Body Length (LB) | 44 mm | Ölçüm Türü | Metric |
| Body Diameter_2 (BD_2) | 34 mm | Gövde Malzemesi | Steel |
| Takım Toplam Boyu | 152 mm | Unit | M |
| Uygulama | | HSK | |
Ürün Özellikleri
| FamilyDesc | Thermal shrinking chucks with HSK DIN 69893 form A taper shanks for solid carbide and steel shank tools | FamilyName | HSK A-SRKIN |
| Remarks | Use only inductive heating device for T SHRINK holders | BrandName | Taegutec |
| COO | ISRAEL |
Nakliye Bilgisi
PackageWeight
1.2050
Ad
Shrink Fit Holders
FamilyName
HSK A-SRKIN
BrandName
Taegutec
