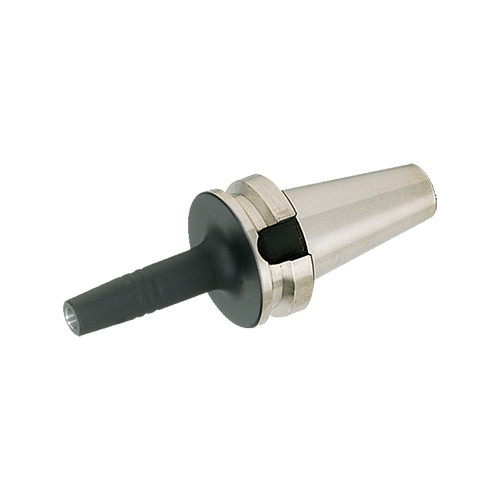

BT40 SRK 6X85
Thermal shrinking chucks with BT MAS-403 form AD taper shanks for solid carbide tools
Ürün Özellikleri

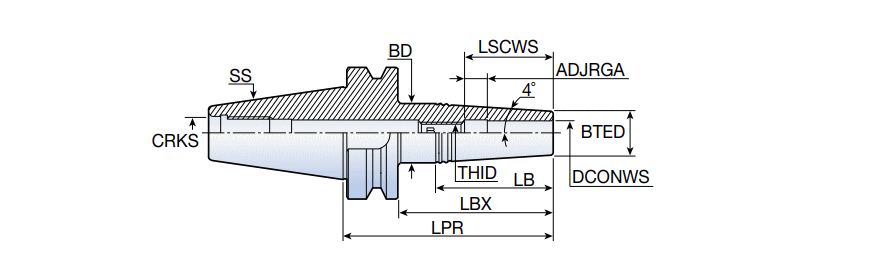

| Connection Diameter Workpiece Side (DCONWS) | 6 mm | Clamping Length Workpiece Side (LSCWS) | 24 mm |
| Shank Size (SS) | 40 mm | Shank Length (LS) | 65.4 mm |
| Body Length (LB) | 64.15 mm | Usable Length (LU) | 112 mm |
| Body Diameter_2 (BD_2) | 11 mm | Ölçüm Türü | Metric |
| Uygulama | | BT | | Gövde Malzemesi | Steel |
| Thread Designation Inside (THID) | M8 | Unit | M |
Ürün Özellikleri
| FamilyDesc | Thermal shrinking chucks with BT MAS-403 form AD taper shanks for solid carbide tools | FamilyName | BT-SRK |
| COO | ISRAEL | BrandName | Taegutec |
Nakliye Bilgisi
PackageWeight
1.1200
Ad
Shrink Fit Holders
FamilyName
BT-SRK
BrandName
Taegutec
