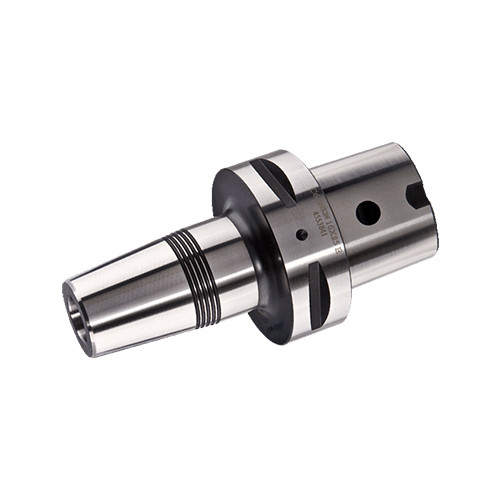

C5 SRKIN 14X80

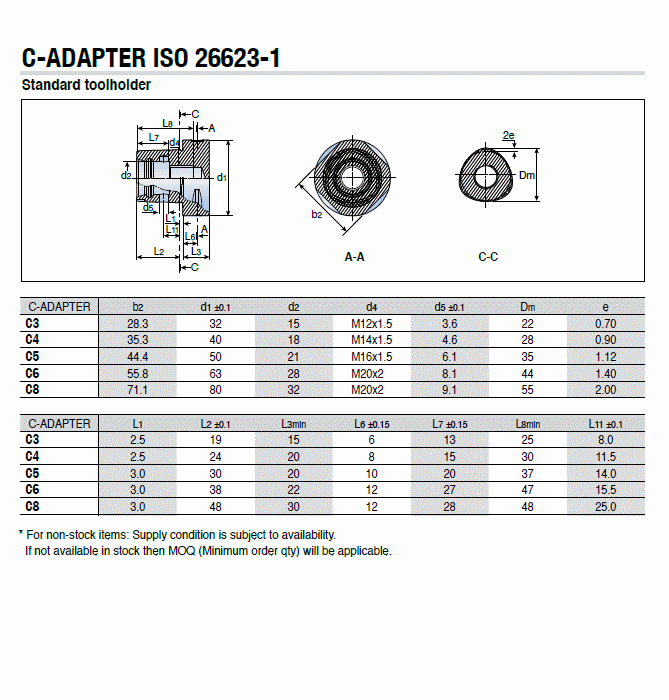

Thermal shrinking chucks with C-ADAPTER (ISO 26623-1) shanks for solid carbide and steel shank tools
Ürün Özellikleri

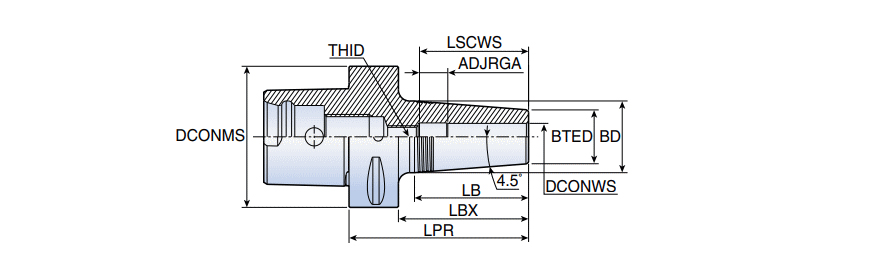

| Connection Diameter Workpiece Side (DCONWS) | 14 mm | Clamping Length Workpiece Side (LSCWS) | 47 mm |
| Shank Size (SS) | 50 mm | Usable Length (LU) | 80 mm |
| Body Length (LB) | 44.5 mm | Ölçüm Türü | Metric |
| Body Diameter_2 (BD_2) | 27 mm | Gövde Malzemesi | Steel |
| Uygulama | | Capto Adaptör | | Unit | M |
| Thread Designation Inside (THID) | M10 |
Ürün Özellikleri
| FamilyDesc | Thermal shrinking chucks with C-ADAPTER (ISO 26623-1) shanks for solid carbide and steel shank tools | FamilyName | C-SRKIN |
| COO | ISRAEL | BrandName | Taegutec |
Nakliye Bilgisi
PackageWeight
0.7940
Ad
Shrink Fit Holders
FamilyName
C-SRKIN
BrandName
Taegutec
