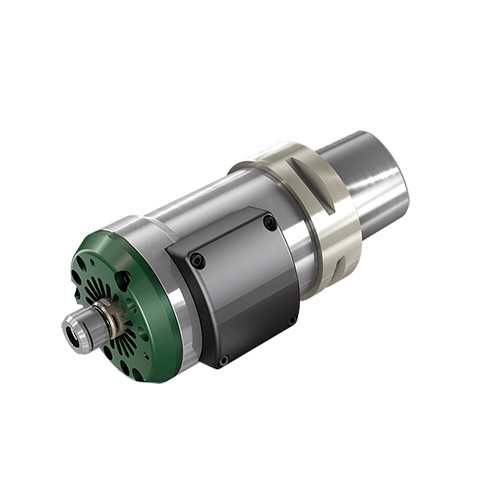

TJS GJET C6
Coolant driven high-speed compact spindles with C-ADAPTER shanks
Ürün Özellikleri

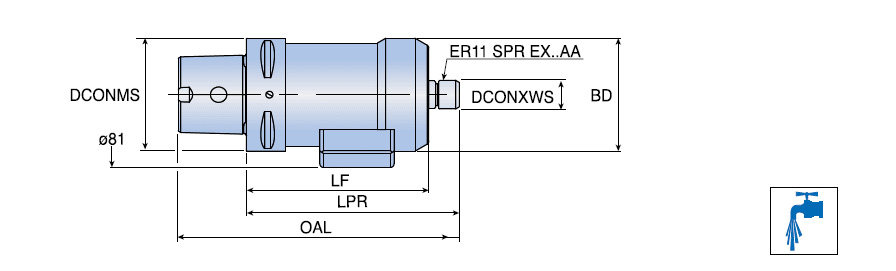

| Functional Length (LF) | 102 mm | Uygulama | | Hız kafası (İçten su verme bas | |
| Protruding Length (LPR) | 119 mm | Takım Bağlama Çapı (DCONMS) | 63 mm |
| Takım Toplam Boyu | 119 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 7 mm |
| Body Diameter (BD) | 63 mm | Gövde Malzemesi | Steel |
| Ölçüm Türü | Metric | Unit | M |
Ürün Özellikleri
| FamilyDesc | Coolant driven high-speed compact spindles with C-ADAPTER shanks | FamilyName | TJS-GJET-C# |
| Remarks | Minimum coolant pressure 20 bar and flow rate 12 l/min The spindle provides only external strong coolant jet around the tool | BrandName | Taegutec |
| COO | ISRAEL |
Nakliye Bilgisi
PackageWeight
0.0000
Ad
HSM Spindles
FamilyName
TJS-GJET-C#
BrandName
Taegutec
