C8 SRKIN 16X120 CX
CX coolant type thermal shrinking chucks
Ürün Özellikleri

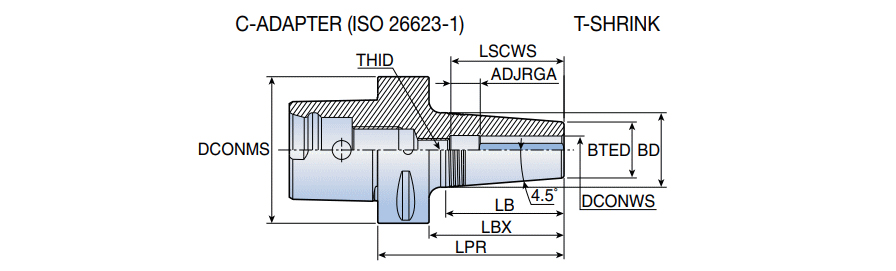

| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Clamping Length Workpiece Side (LSCWS) | 48 mm |
| Shank Size (SS) | 80 mm | Usable Length (LU) | 120 mm |
| Body Length (LB) | 44.5 mm | Ölçüm Türü | Metric |
| Body Diameter_2 (BD_2) | 27 mm | Gövde Malzemesi | Steel |
| Uygulama | | Capto Adaptör | | Unit | M |
| Thread Designation Inside (THID) | M12 |
Ürün Özellikleri
| FamilyDesc | CX coolant type thermal shrinking chucks | FamilyName | C-SRKIN-CX |
| Remarks | Only use inductive heating device for T SHRINK holders | BrandName | Taegutec |
| COO | ISRAEL |
Nakliye Bilgisi
PackageWeight
0.0000
Ad
Shrink Fit Holders
FamilyName
C-SRKIN-CX
BrandName
Taegutec
